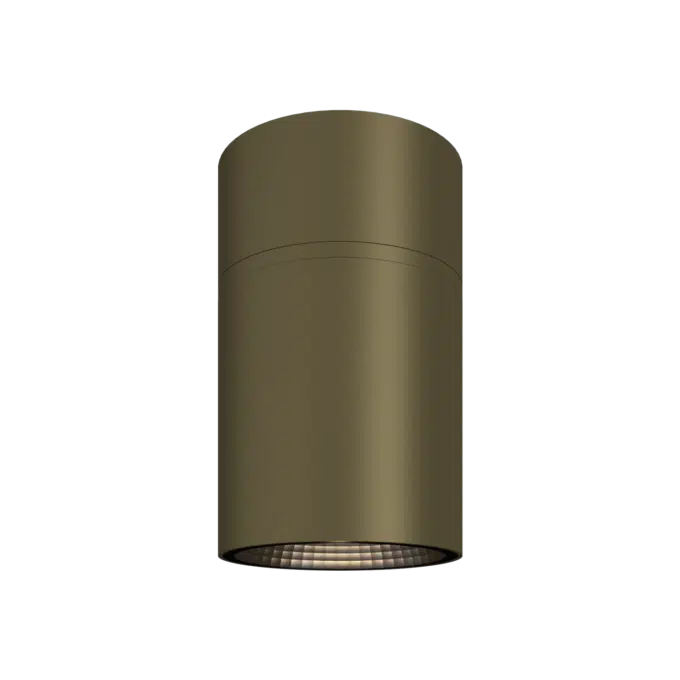

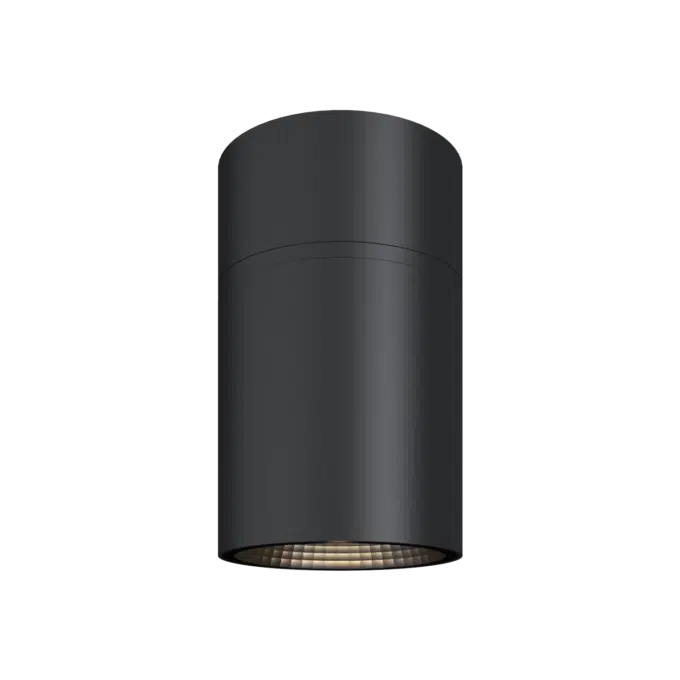

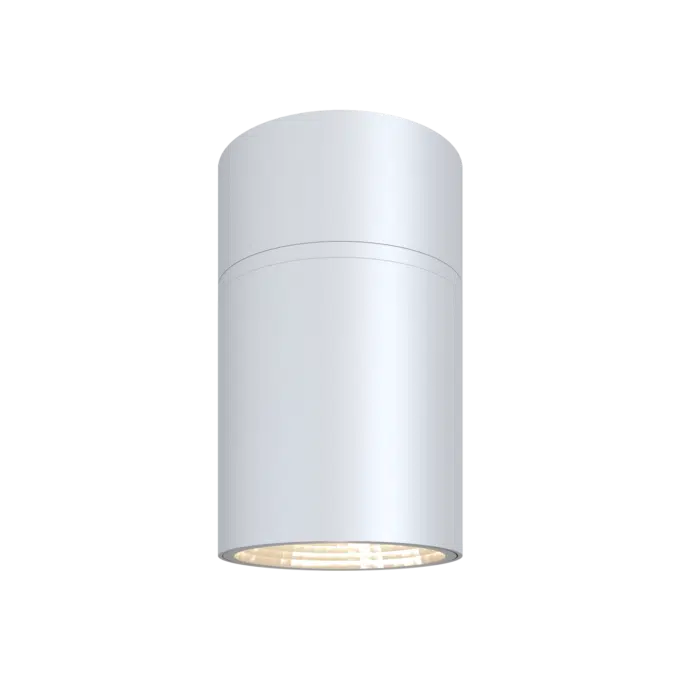

Exterior surface mount downlight with 26W Zhaga compliant LED source. Sturdy cylinder-shaped housing with reflector inside for beam enhancement. Warm Dimming (1800K~3000K) option available.
Specification Sheet (Surface Mount)
L603
$0.00
Downloads
Options
Applications
Drivers & Tools
Attributes
Documents
Specification Sheet (C14)
Installation Sheet (Surface Mount)
Installation Sheet (C14)
Photometrics
IES file
LDT file
3D Models
REVIT file
Color Temperature (CCT)
-
- 2700K
-
- 3000K
-
- 3500K
Color Temperature (CCT)
-
- Spot (12°)
-
- Narrow Flood (30°)
-
- Flood (45°)
Canopy Options
-
- C14
| Application | |
|---|---|
| Beam Angle | |
| Wattage | |
| Trim Diameter (exposed) | |
| Dimensions | Ø4-5/8", H 7-1/4" |
| Mounting Options | |
| Installation Options | Canopy |
| CCT & CRI | W27H, W27V, W30DAY (Daylight Spectrum), W30H, W30V, W35H, WD |
| IP Rating | |
| Finishes & Materials | Black Power Coated, Bronze Power Coated, Silver Powder Coated, White Powder Coated |
| Source Lumens | 26W: 1430lm |
| Delivered Lumens | |
| Types of Drivers | Integral Driver, Remote Driver (consult factory) |
| Backbox | 3rd Party Back Box |
| Field Adjustable | No |
