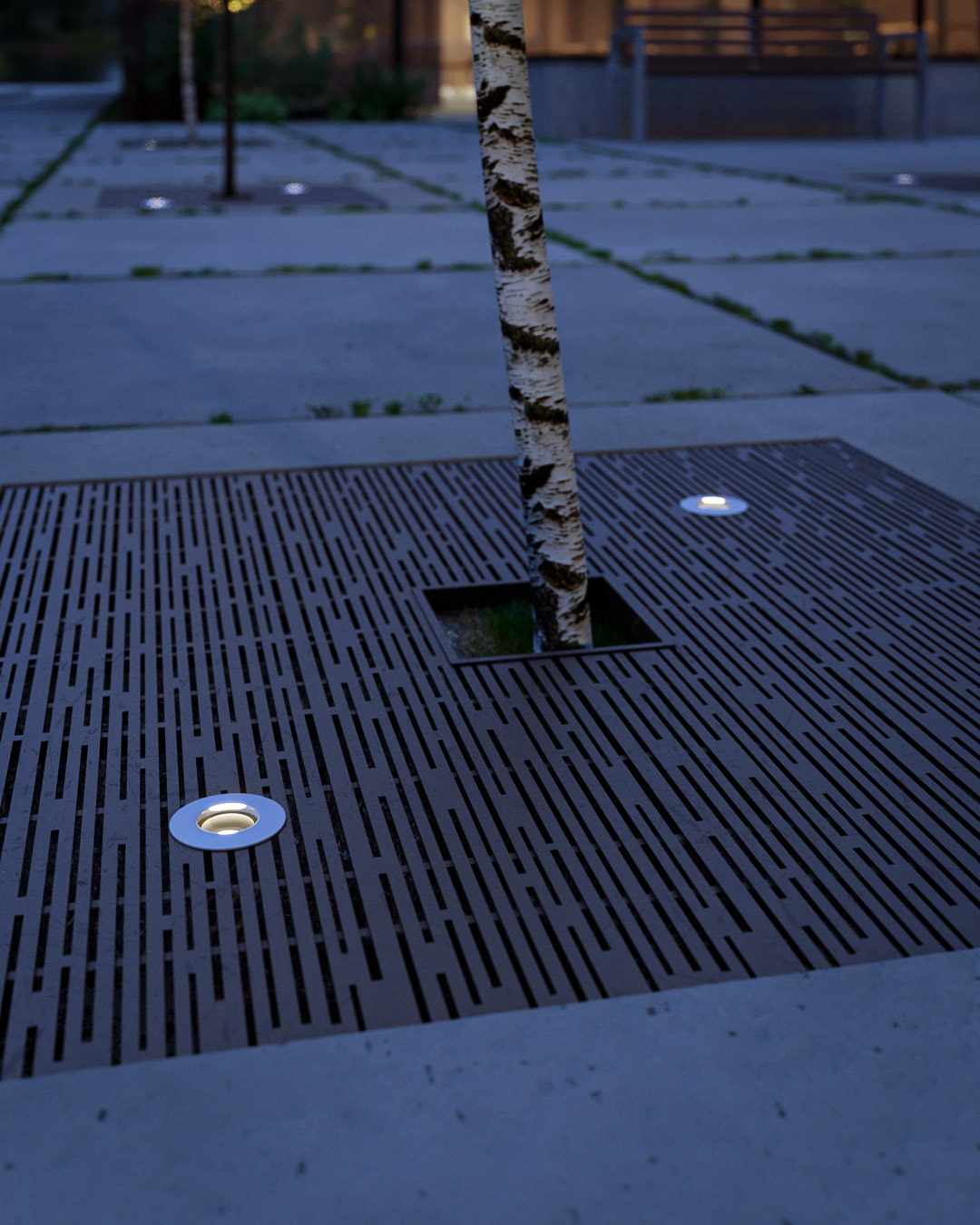

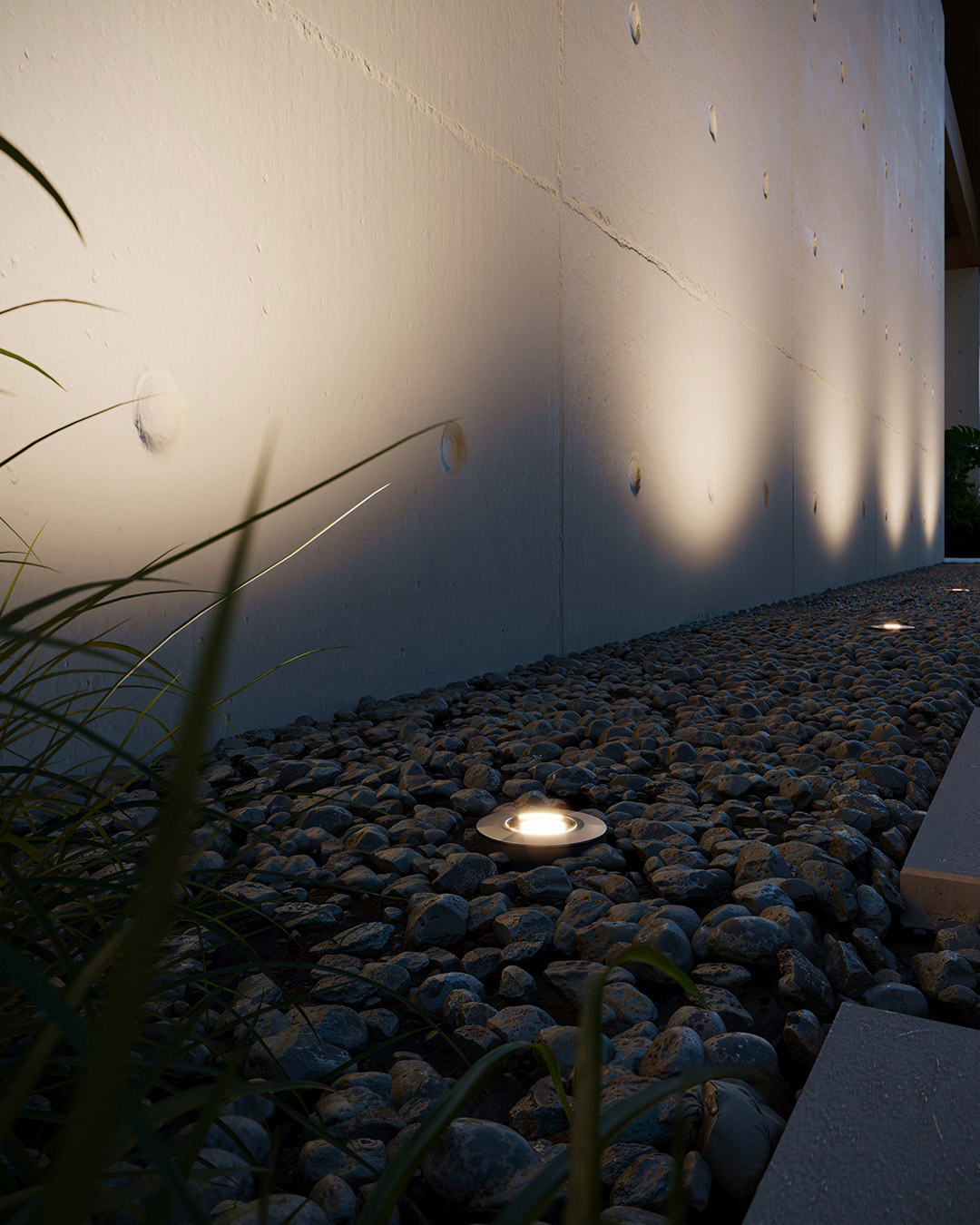

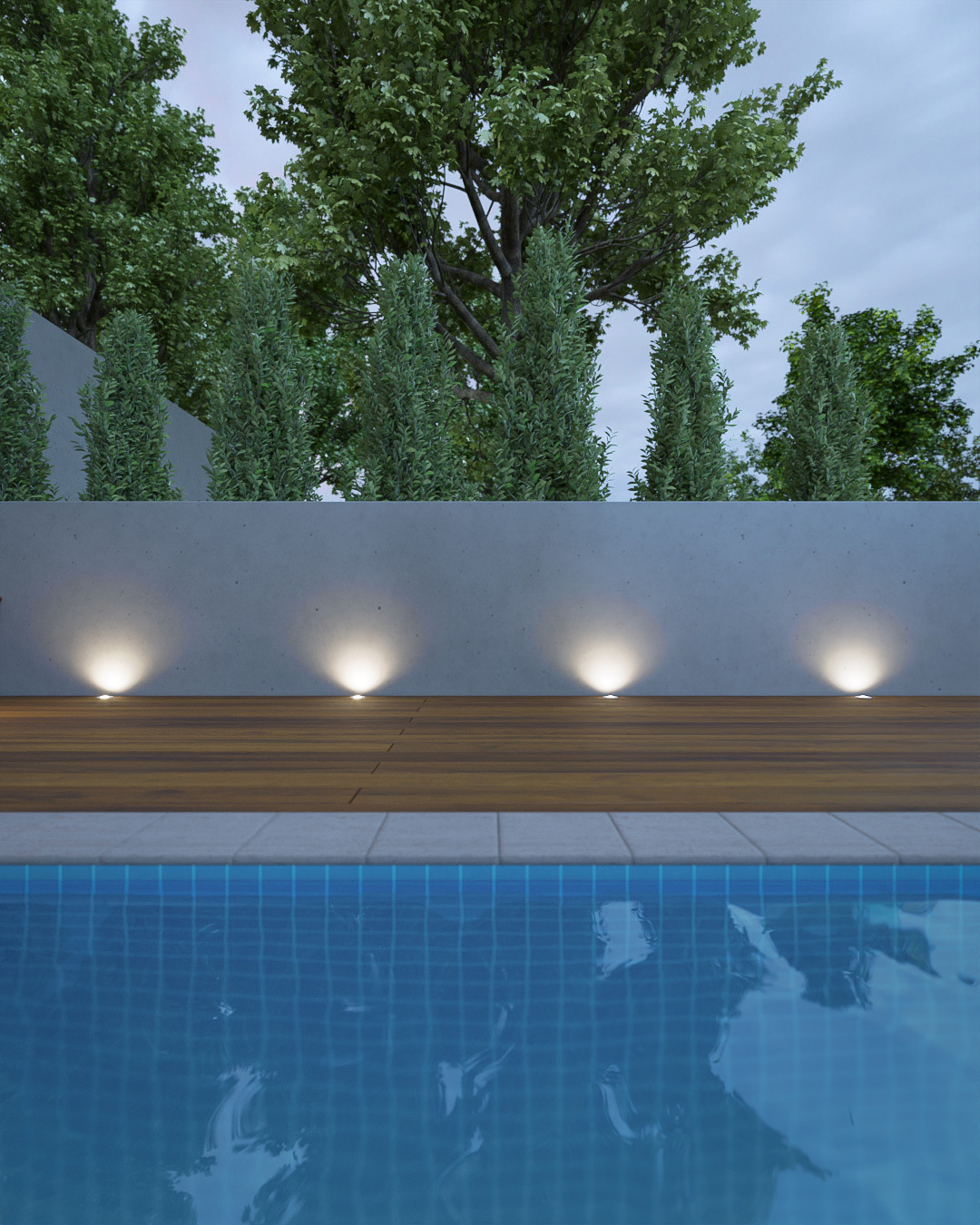

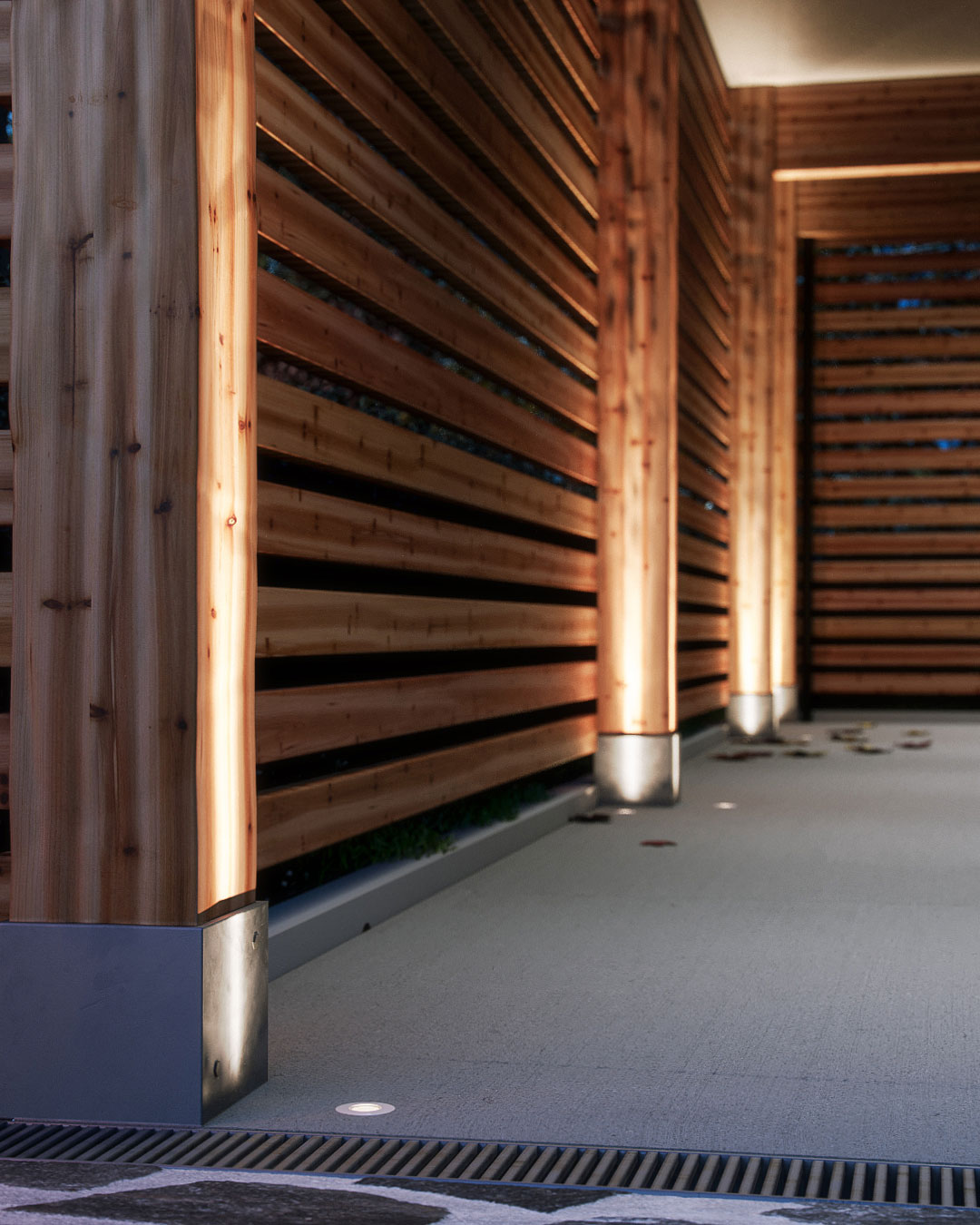

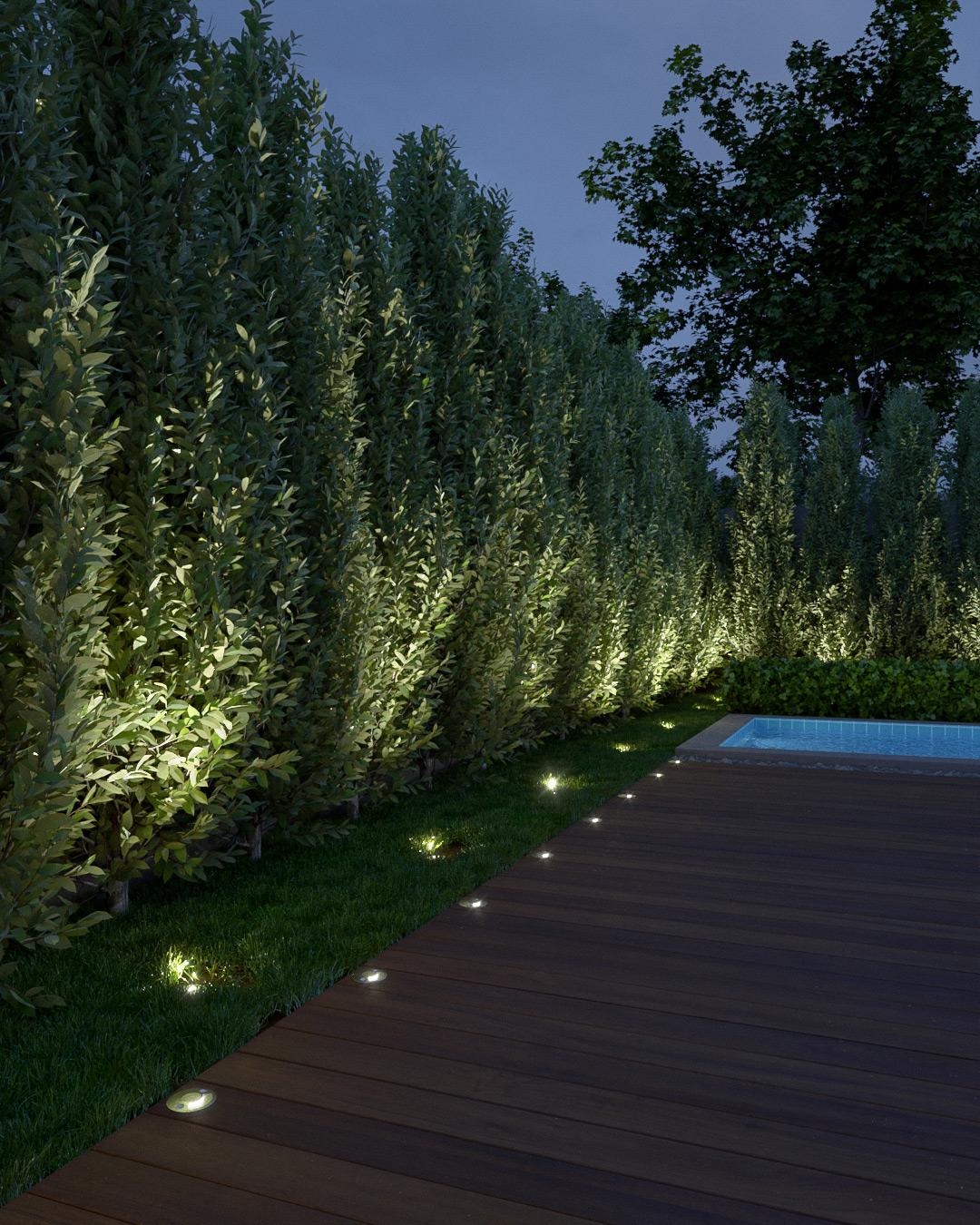

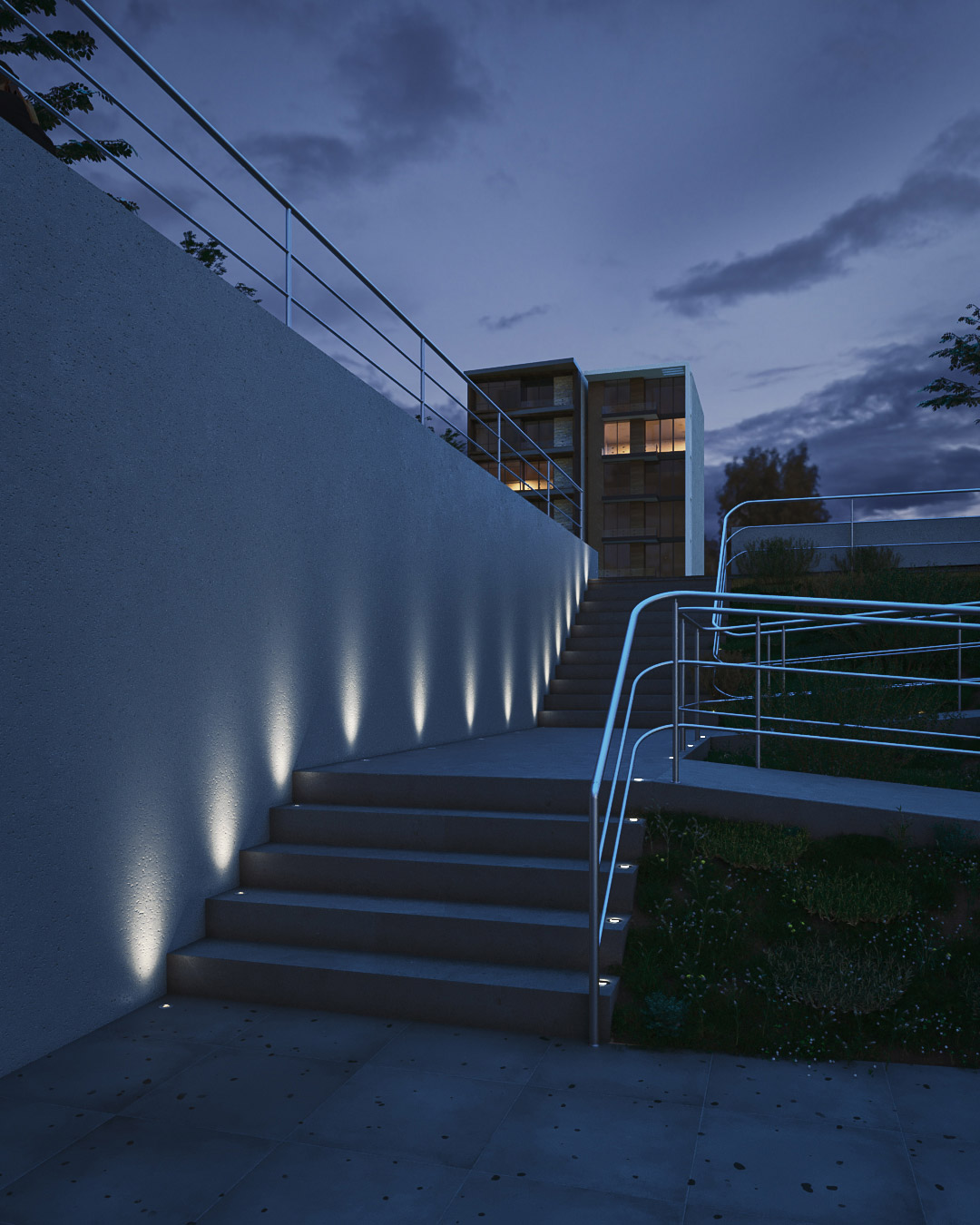

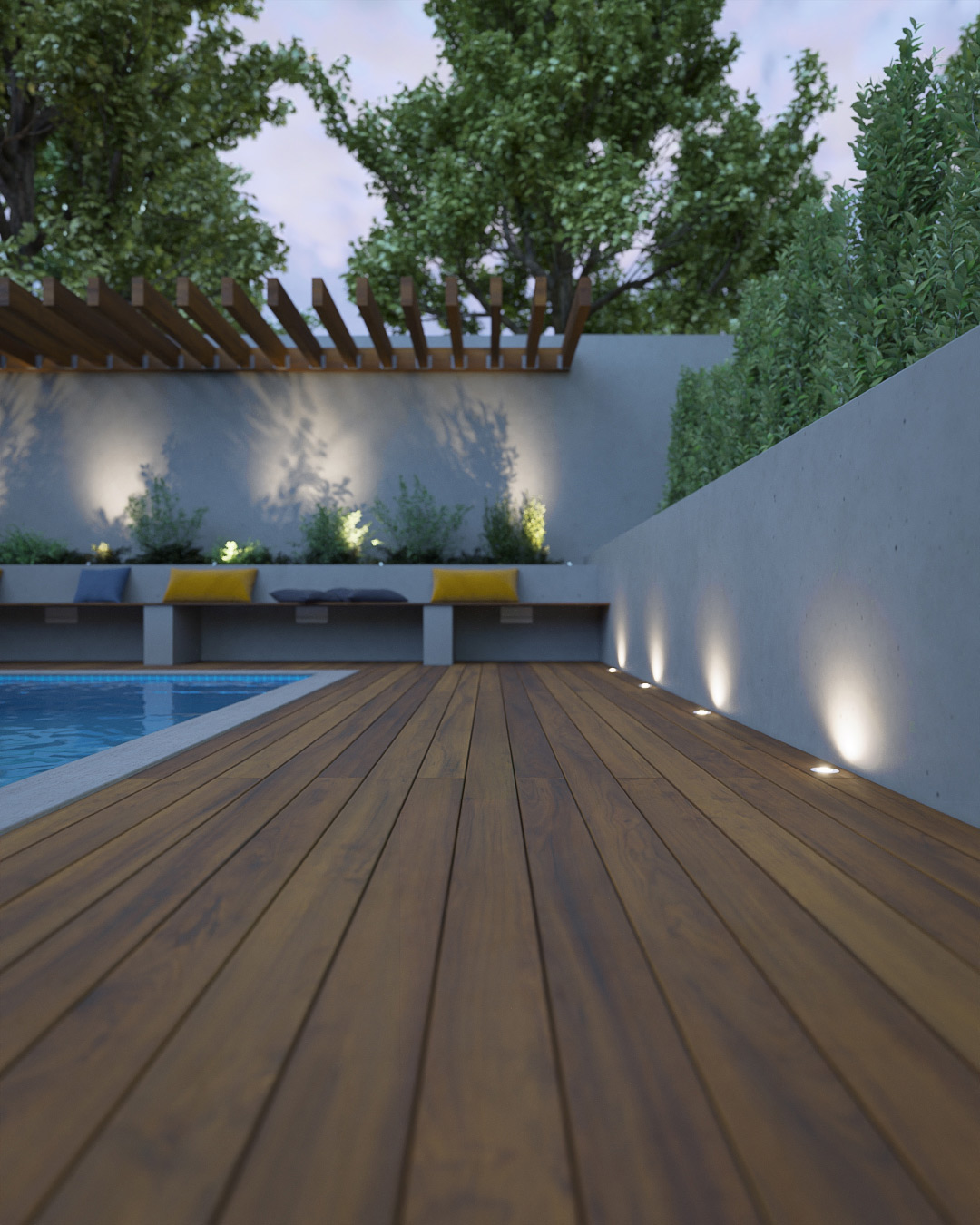

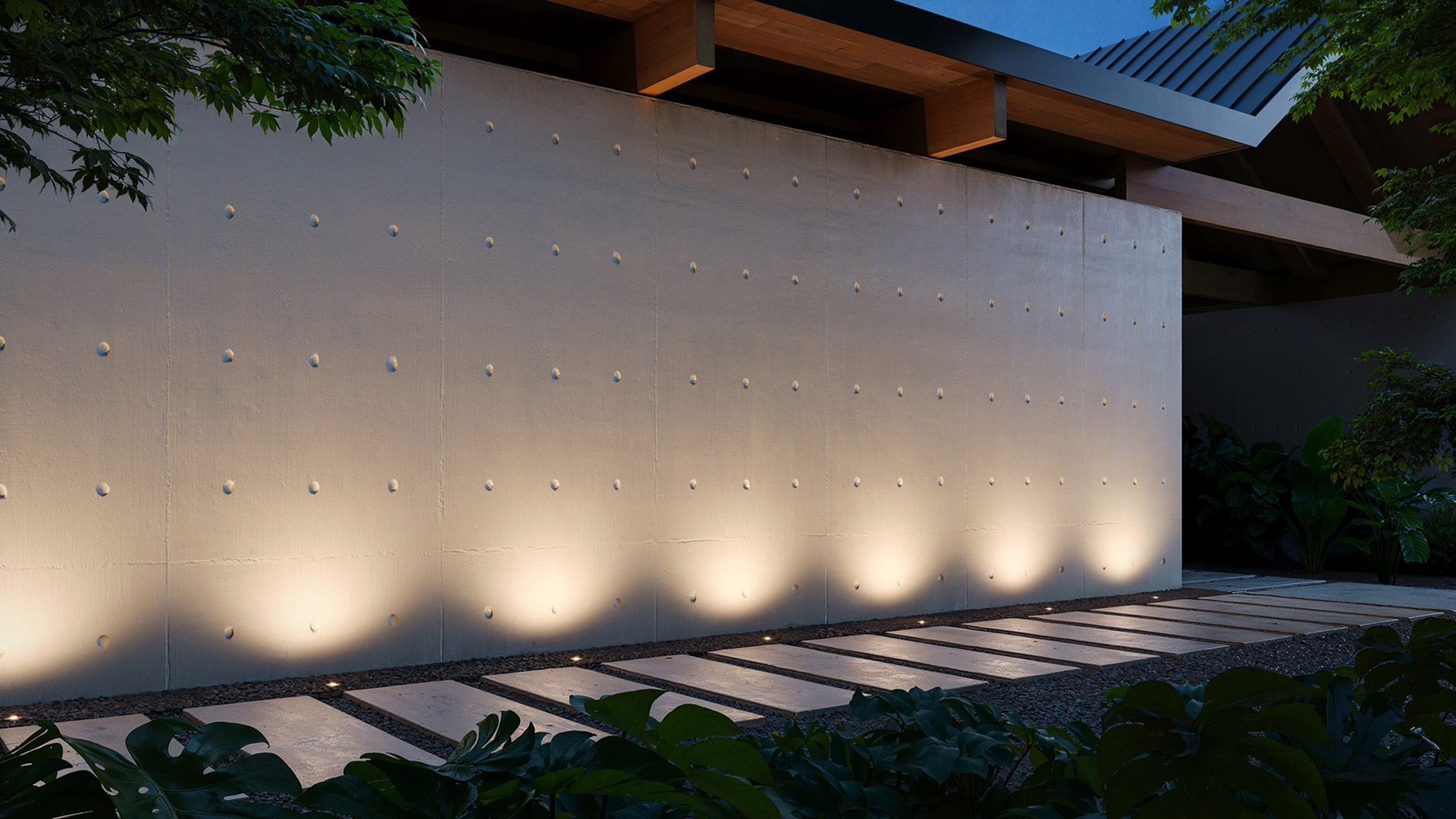

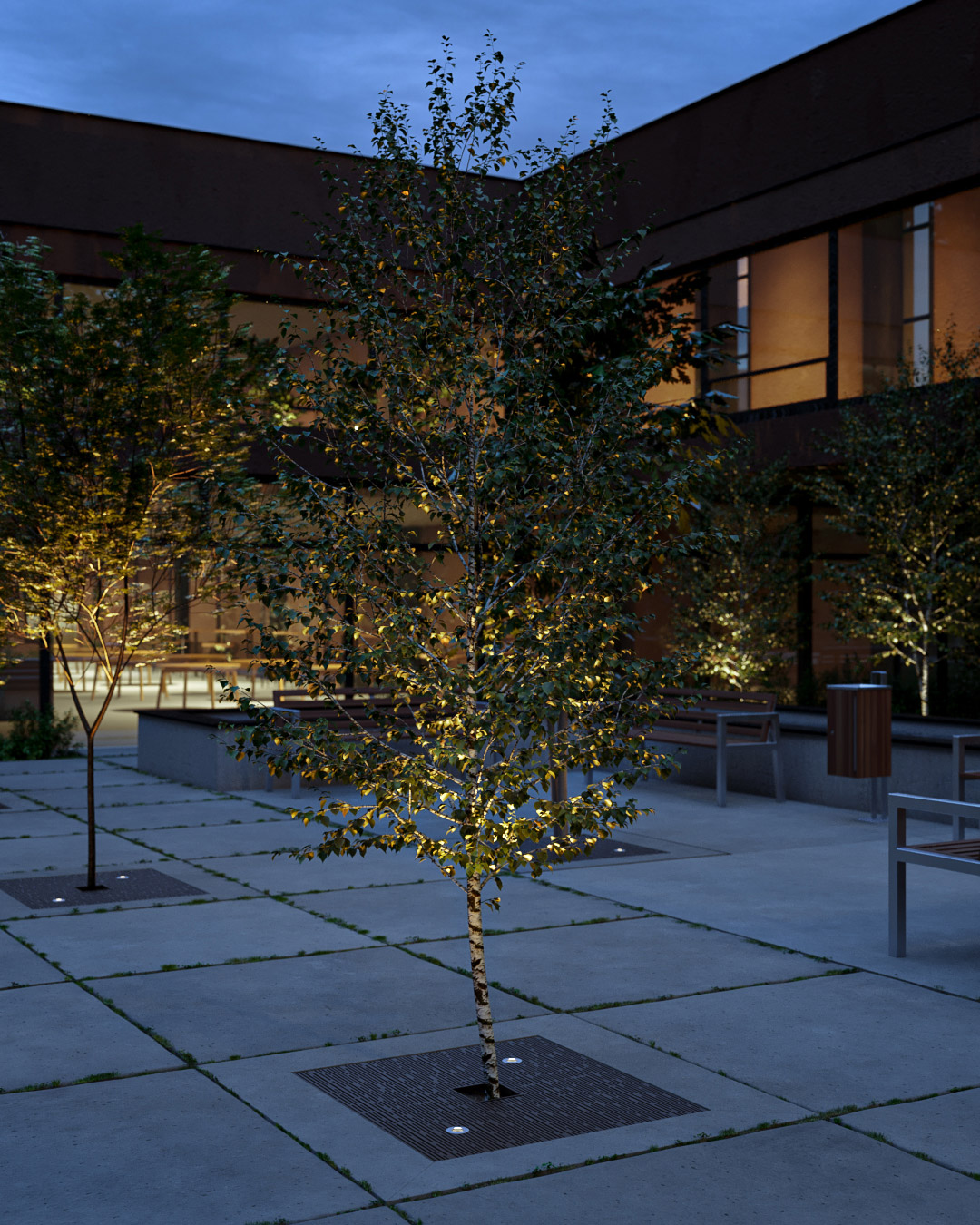

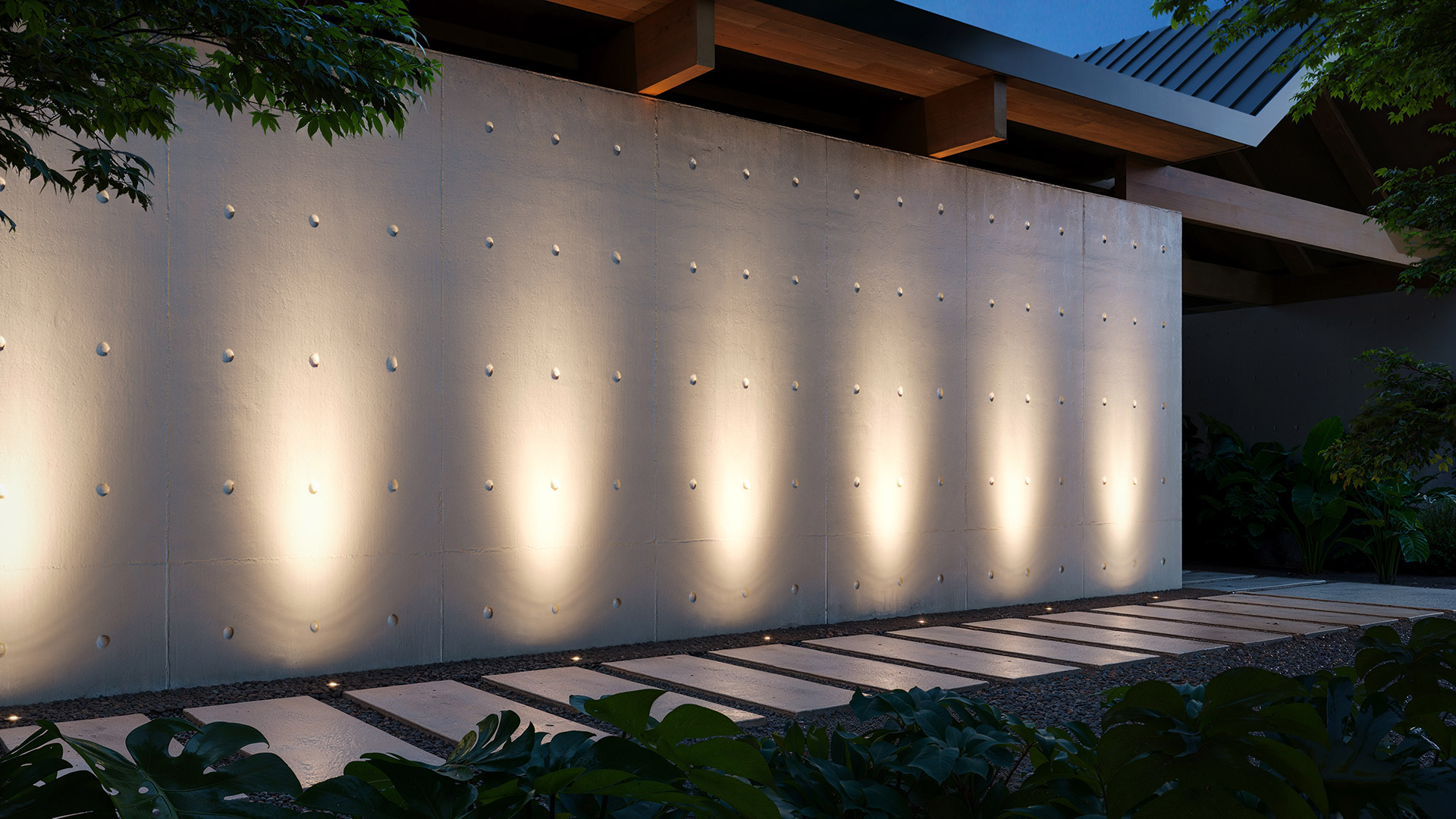

In-ground light with 1W or 2W LED. Outdoor-rated materials and finishes. Easy installation in concrete pour and paving stones. Optional anti-slip lens safe for public and high-traffic commercial projects.
Specification Sheet
L01
$0.00
Downloads
Options & Hardware
Applications
Drivers & Tools
Attributes
Documents
Installation Sheet
Mounting Kit 1
Mounting Kit 3
Back Box Comparison
Mounting Pipe (Optional)
Photometrics
IES file
LDT file
3D Models
REVIT file
Color Temperature (CCT)
-
- 2200K
-
- 2700K
-
- 3000K
-
- 3500K
-
- 4100K
Beam Angle
-
- Super Spot (7°)
-
- Spot (12°)
-
- Narrow Flood (30°)
-
- Wide Flood (120°)
Accessories | Louvers (Optional)
-
- LB
-
- QB
-
- RB
-
- SB
-
- QB
-
- HB
-
- HM
Hardware (Optional)
-
- PIPE-C
-
- PIPE-C-TJoiner
-
- PIPE connectors assembled
| Application | |
|---|---|
| Wattage | |
| Beam Angle | Elliptical (7°+36°), Narrow Flood (30°), Spot (12°), Wide Flood (120°) |
| CCT & CRI | |
| Glass Option | |

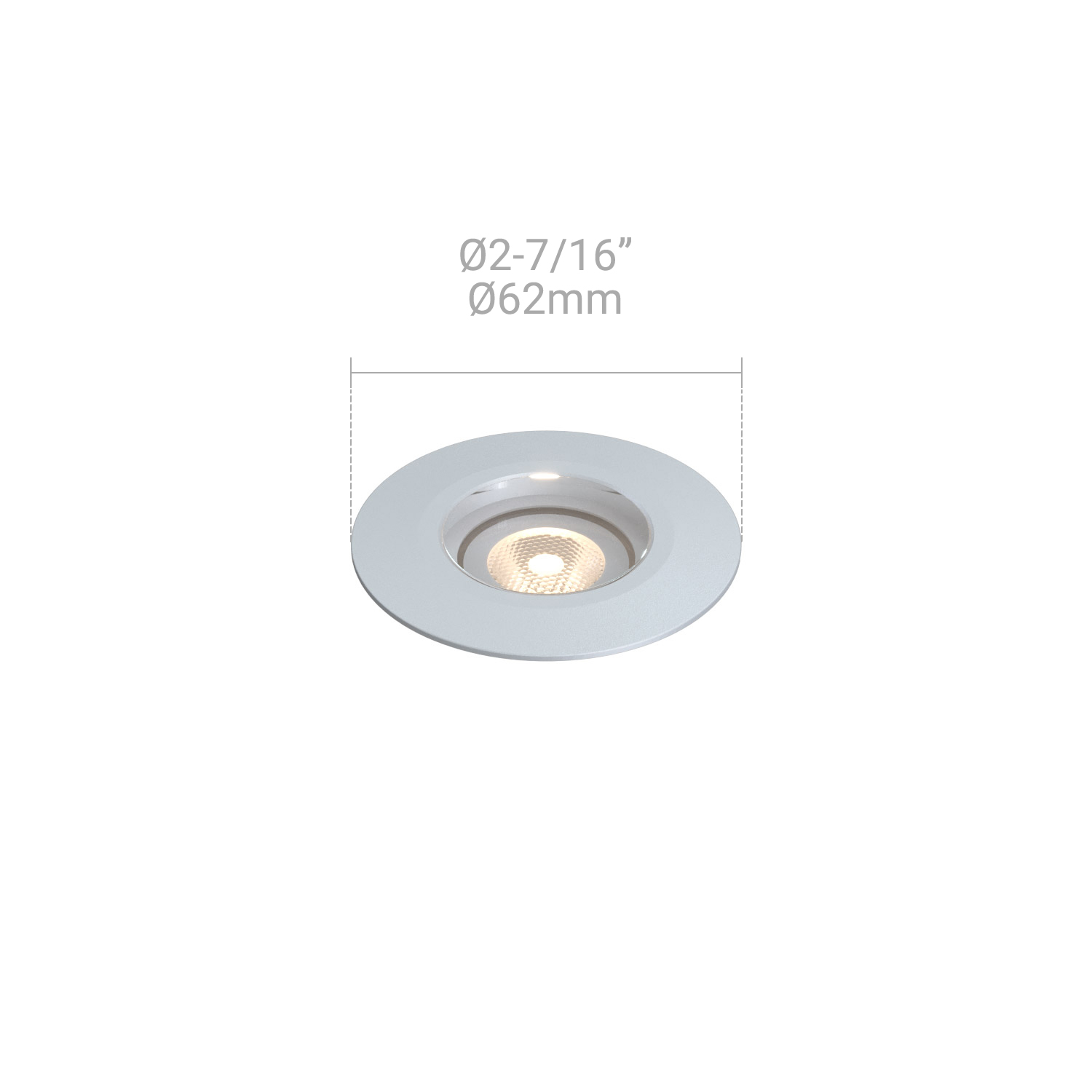

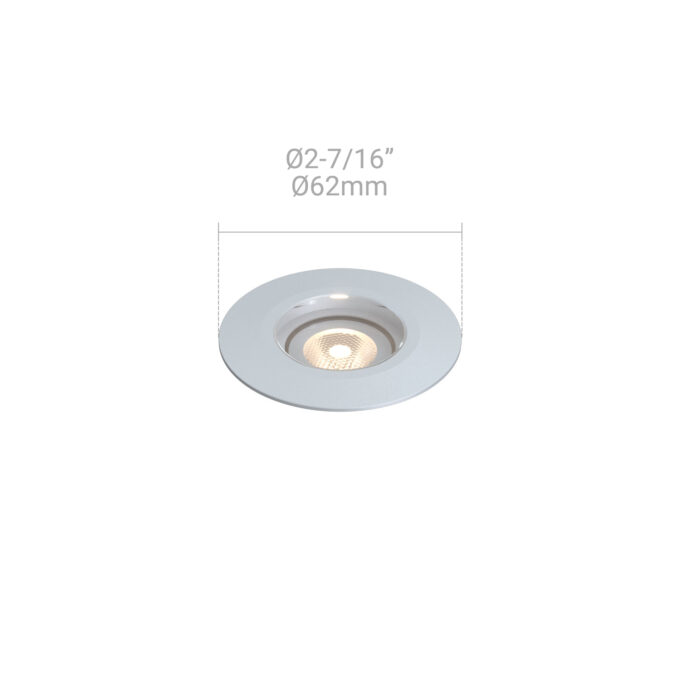

| Trim Diameter (exposed) | |
| IP Rating | |
| Finishes & Materials | Antique Brass, Antique Bronze, Black Anodized, Black Stainless Steel, Bronze Power Coated, Matte Clear Anodized, Polished Brass, Polished Stainless Steel 316, Stainless Steel 316 |
| Source Lumens | 1W: 110lm, 2W: 275lm |
| Delivered Lumens | |
| Drive Over Rating | 9,700lbs (4,400kg) |
| Types of Drivers | Remote Driver |
| Backbox | Proprietary Back Box |
| Accessories | Internal Angle Bracket, Louvers |
