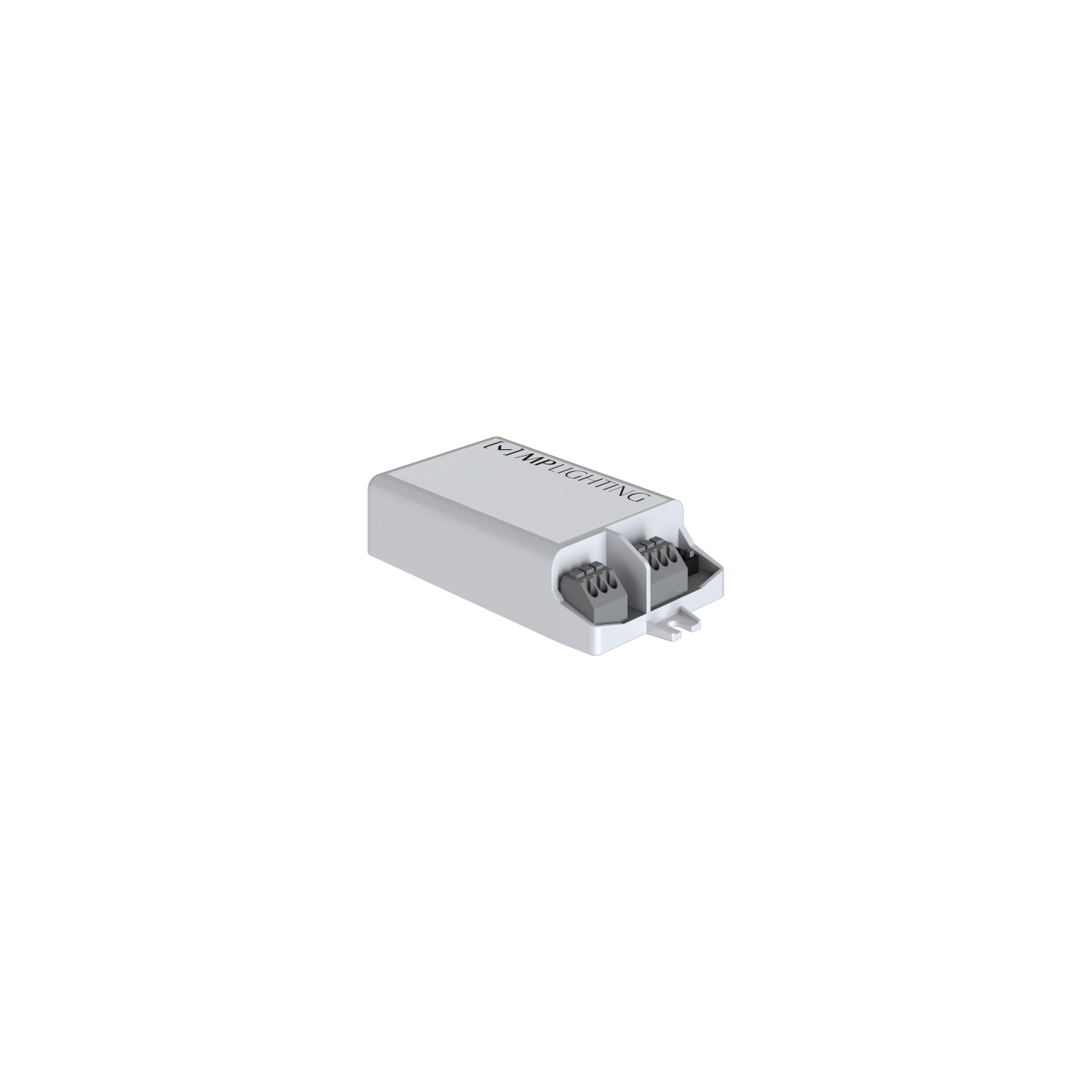

LED20W700iZ-04

Name: LED20W700iZ-04
SKU: LED20W700iZ-04

$0.00

110~240V in 20W (Europe) and 15W (North America), 700mA, 0-10V dimmable, Constant Current LED Driver.
Driver enclosure included.

Application

Input Voltage

Output Voltage

Output Wattage

Output Current

Dimming Protocol

Dimming Range

Dimensions

Wiring

Recommended Use

Clear

Quantity Qty

Specification Sheet

Enclosure

Application	Interior
Input Voltage	110~240V AC, 50/60 Hz
Output Voltage	3~29V DC
Output Wattage	15W Max (North America), 20W Max (Europe)
Output Current	700mA
Dimming Protocol	0-10V Dimmable
Dimming Range	1%~100%
Dimensions	4-1/4" x 2" x 7/8"
Wiring	Series
Recommended Use	Europe: 2~8 2W/2.5W LEDs, North America: 2~6 2W/2.5W LEDs
Designed for	North America, Others

SKU: LED20W700iZ-04 Category: Constant Current Driver
